螺絲外形:
{pboot:if('
{/pboot:if}

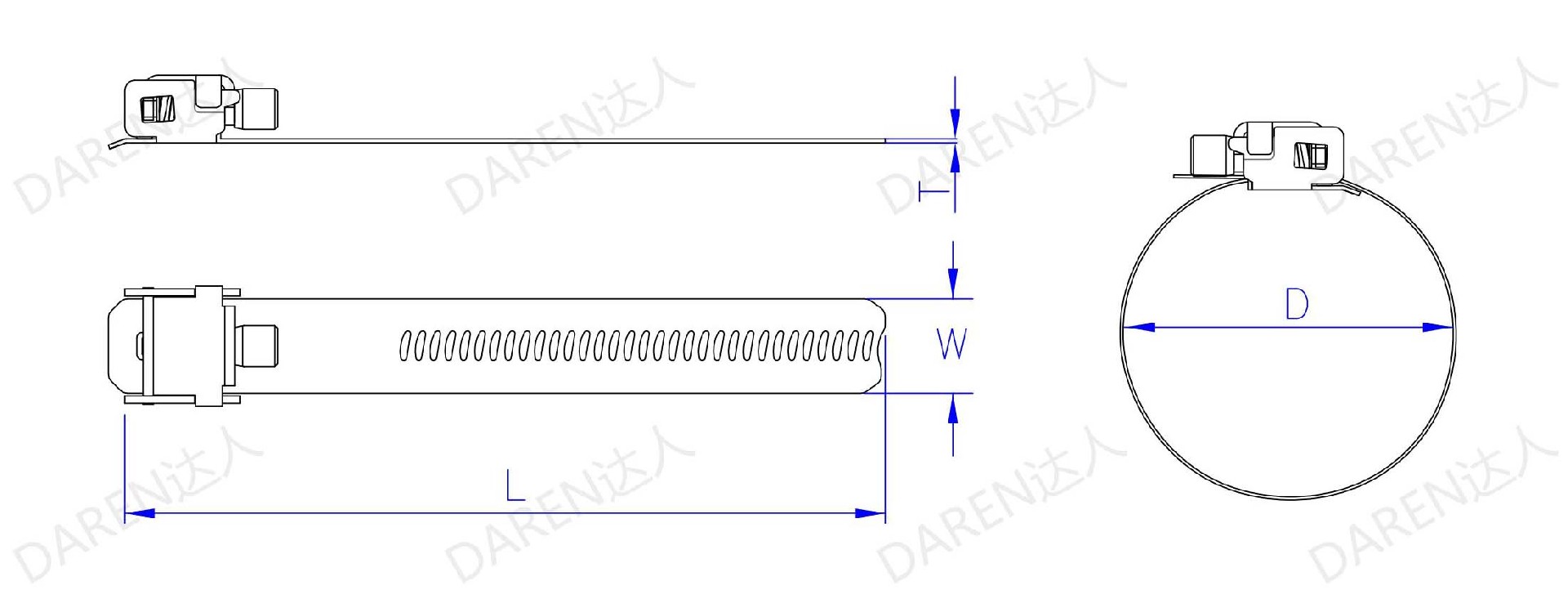

產品圖紙
規格尺寸
Item No | width/寬度 | Dimension Range in | thickness/厚度 | |||
mm | inch | mm | inch | mm | inch | |
KL12.7-110 | 12.7 | 0.50 | 50-110 | 2"-4" | 0.7 | 0.03 |
KL12.7-145 | 50-145 | 2"-5 3/4" | ||||
KL12.7-175 | 50-175 | 2"-6 9/10" | ||||
KL12.7-215 | 50-215 | 2"-8 1/2" | ||||
KL12.7-280 | 50-280 | 2"-11" | ||||
KL12.7-325 | 50-325 | 2"-12 4/5" | ||||
KL12.7-370 | 50-370 | 2"-14 3/5" | ||||
KL12.7-525 | 60-525 | 2 3/8"-20 2/3" | ||||
KL12.7-540 | 60-540 | 2 3/8"-21 1/4" | ||||
KL12.7-625 | 70-625 | 2 3/4"-24 3/5" | ||||
KL12.7-660 | 70-660 | 2 3/4"-26" | ||||
KL14-110 | 14 | 0.55 | 50-110 | 2"-4" | 0.7 | 0.03 |
KL14-145 | 50-145 | 2"-5 3/4" | ||||
KL14-175 | 50-175 | 2"-6 9/10" | ||||
KL14-215 | 50-215 | 2"-8 1/2" | ||||
KL14-280 | 50-280 | 2"-11" | ||||
KL14-325 | 50-325 | 2"-12 4/5" | ||||
KL14-370 | 50-370 | 2"-14 3/5" | ||||
KL14-525 | 60-525 | 2 3/8"-20 2/3" | ||||
KL14-540 | 60-540 | 2 3/8"-21 1/4" | ||||
KL14-625 | 70-625 | 2 3/4"-24 3/5" | ||||
KL14-660 | 70-660 | 2 3/4"-26" | ||||
